Trek Emonda SLR 7

Trek Emonda SLR 7
  • Color: Metallic Red Smoke to Red Carbon Smoke
  • Color: Deep Smoke
  • Color: Viper Red
  • Color: Azure
$8,999.99
Color: Azure
Size: 54cm
Wheel Size: 700c
Please select options Unavailable

Details

Emonda SLR 7 Disc is an ultralight, aerodynamic carbon road bike that's designed and built to be the fastest climbing bike we've ever made. You get the legendary ride quality of our lightest platform, plus more speed, thanks to aero tubes wrought from our lightest OCLV layup ever. You also get the blazing fast precision shifting of a wireless electronic Shimano Ultegra Di2 drivetrain.

- Trek’s fastest climbing bike is aero, weighs in at less than 700g, and rides like a dream
- Wireless Ultegra Di2 delivers ever faster, smoother, and more responsive shifts than ever
- 800 Series OCLV Carbon is the lightest laminate we’ve ever made
- Aerodynamic tube shaping makes this our fastest Émonda SLR platform ever—on flats and climbs alike
- The Aeolus Pro 37 wheels are designed for climbing, and were developed alongside Émonda

Geometry Chart:
Frame size number47 cm50 cm52 cm54 cm56 cm58 cm60 cm62 cm
Wheel size 700c 700c 700c 700c 700c 700c 700c 700c
A — Seat tube 42.4 45.3 48.3 49.6 52.5 55.3 57.3 59.3
B — Seat tube angle 74.6° 74.6° 74.2° 73.7° 73.3° 73.0° 72.8° 72.5°
C — Head tube length 10 11.1 12.1 13.1 15.1 17.1 19.1 21.1
D — Head angle 72.1° 72.1° 72.8° 73.0° 73.5° 73.8° 73.9° 73.9°
E — Effective top tube 51.2 52.1 53.4 54.3 55.9 57.4 58.6 59.8
G — Bottom bracket drop 7.2 7.2 7.2 7 7 6.8 6.8 6.8
H — Chainstay length 41 41 41 41 41 41.1 41.1 41.2
I — Offset 4.5 4.5 4.5 4.5 4 4 4 4
J — Trail 6.8 6.2 5.8 5.6 5.8 5.7 5.6 5.6
K — Wheelbase 97.2 97.4 97.7 98.1 98.3 99.2 100.1 101
L — Standover 69.2 71.1 73.2 74.4 76.8 79.3 81.1 82.9
M — Frame reach 37.3 37.8 38.3 38.6 39.1 39.6 39.9 40.3
N — Frame stack 50.7 52.1 53.3 54.1 56.3 58.1 60.1 62
Stem length 80 80 90 90 100 110 110 110
Saddle rail height min (w/short mast) 55.5 58.5 61.5 64 67 69 71 73
Saddle rail height max (w/short mast) 61.5 64.5 67.5 70 73 75 77 79
Saddle rail height min (w/tall mast) 59 62 65 67.5 70.5 72.5 74.5 76.5
Saddle rail height max (w/tall mast) 65 68 71 73.5 76.5 78.5 80.5 82.5
Sizes:
SizeRider HeightInseam
47 152 - 158 cm
5'0" - 5'2"
71 - 75 cm
28" - 30"
50 158 - 163 cm
5'2" - 5'4"
74 - 77 cm
29" - 30"
52 163 - 168 cm
5'4" - 5'6"
76 - 79 cm
30" - 31"
54 168 - 174 cm
5'6" - 5'9"
78 - 82 cm
31" - 32"
56 174 - 180 cm
5'9" - 5'11"
81 - 85 cm
32" - 33"
58 180 - 185 cm
5'11" - 6'1"
84 - 87 cm
33" - 34"
60 185 - 190 cm
6'1" - 6'3"
86 - 90 cm
34" - 35"
62 190 - 195 cm
6'3" - 6'5"
89 - 92 cm
35" - 36"

Specs

Fork Emonda SLR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle
Rims Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready
Chain Shimano Ultegra/XT M8100, 12 speed
Frame Ultralight 800 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Tires Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c
Brakes Shimano Ultegra hydraulic disc, flat mount
Rotors Shimano MT800, centerlock, 160mm
Saddle Bontrager Aeolus P2 Elite, 155mm width
Wheels Bontrager Aeolus Pro 37
Crankset Shimano Ultegra R8100, 52/36, 165mm length
Seatpost Bontrager carbon seatmast cap, 20mm offset, short length
Shifters Shimano Ultegra R8170 Di2, 12 speed // Shimano Ultegra R8170 Di2, 12 speed

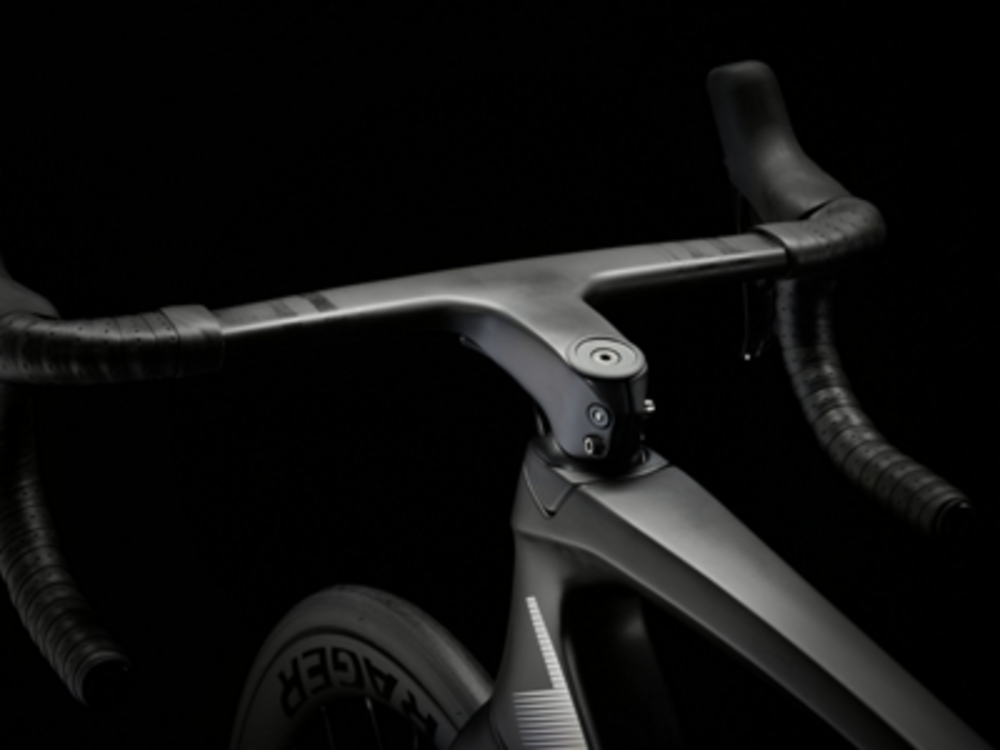

Handlebars Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100mm reach, 124mm drop, 38cm width, 80mm stem length
Bottom Bracket Praxis, T47 threaded, internal bearing
Rear Derailleur Shimano Ultegra R8150 Di2, 34T max cog
Front Derailleur Shimano Ultegra R8150 Di2, braze-on, down swing
Cassette/Freewheel Shimano Ultegra R8100, 11-30, 12 speed

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Azure / 54cm / 700c 768682135495 5278400 EMO17586551E
